P-314 Hydraulic Drill Rig

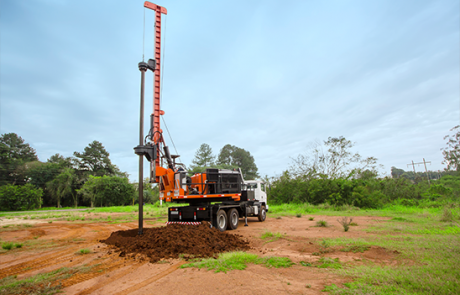

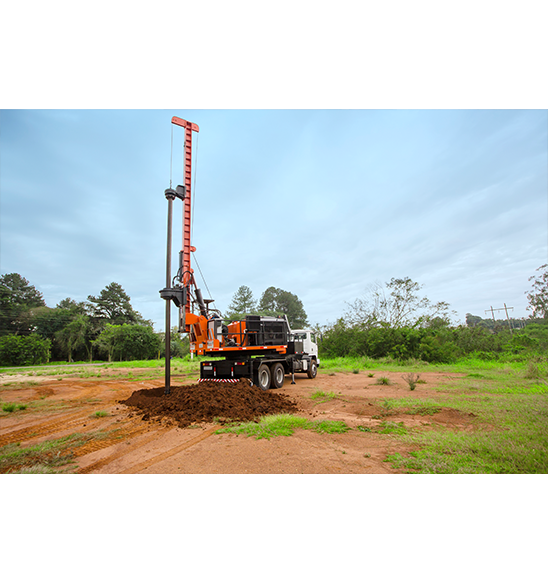

The Bristol P-314 Vehicle Rotary Hydraulic Auger is a proven solution, developed by Bristol, coupled to a truck chassis, which combines robustness, very high performance, agility and productivity for drilling in depths of up to 21m, especially in foundation and staking work.
This Vehicle Drill has a fully hydraulic system for positioning, “pull down” and extraction, allowing drilling using helical drills with high productivity in drilling.

Produced in Brazil with the most advanced technology and manufactured under the strictest quality standards, it delivers high torque, power, robustness, durability and economy, in a modern and safe equipment, of greater size and high productivity, in addition to ease of maintenance and replacement parts and a one-year warranty against manufacturing defects.

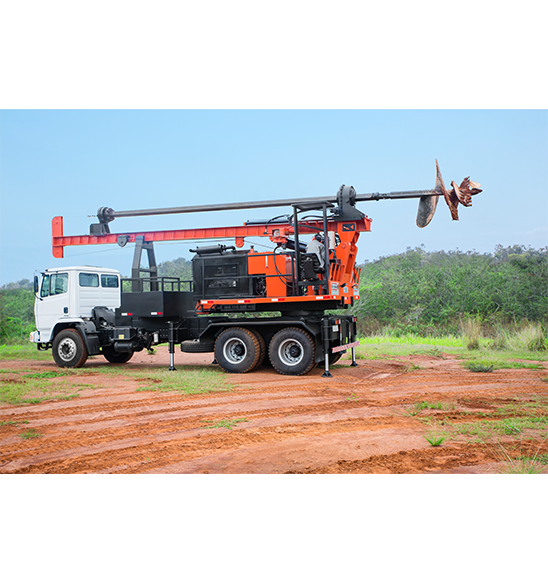

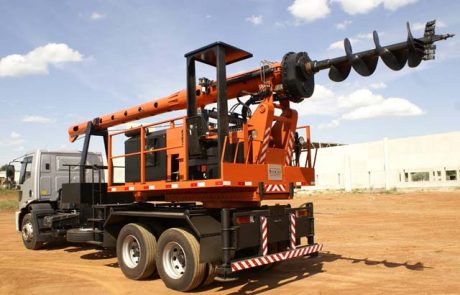

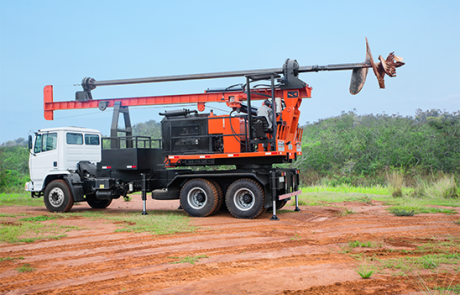

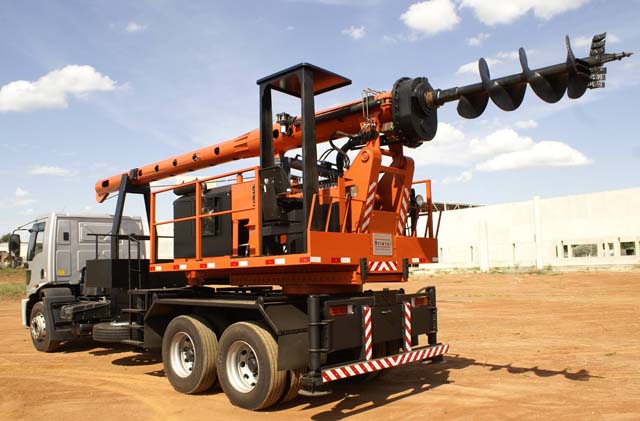

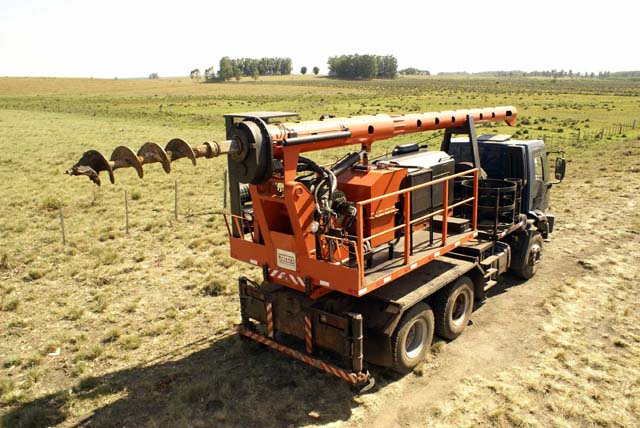

The P-314 Vehicular Auger is mounted on a 6X2 or 6X4 traction truck.

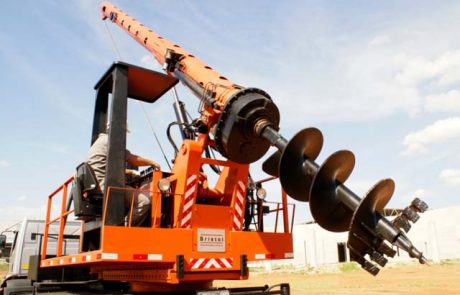

It is an equipment capable of drilling up to 21m deep, in clayey, sandy or rocky soils, using conical drills with claw, from 250 to 1200mm in diameter, the equipment has a maximum rotation of 100 RPM, maximum torque of 16,000 Nm, maximum force axial pulldown of 14.980 kgf and extraction 4.000 kgf.

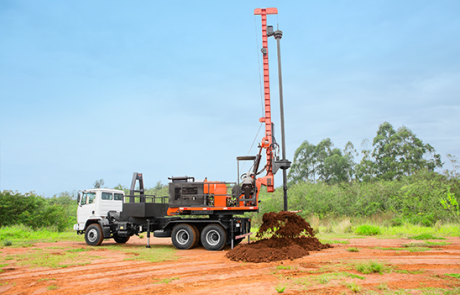

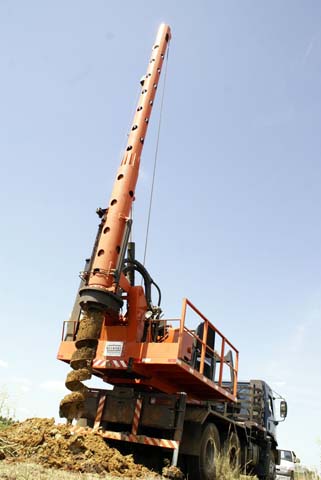

Due to its tubular tower, the extensions and “Kelly” bar are safely stored, facilitating the operation.

It is a complete high-performance solution for use in civil construction, foundation and piling work that requires high productivity and speed, providing reliability, robustness and superior performance, in any type of soil.

Compatible Drills

Tapered Auger with TeethStraight Auger Teeth 1/2″ sheetTapered Auger Teeth 1/2″ sheetStraight Auger with Teeth
