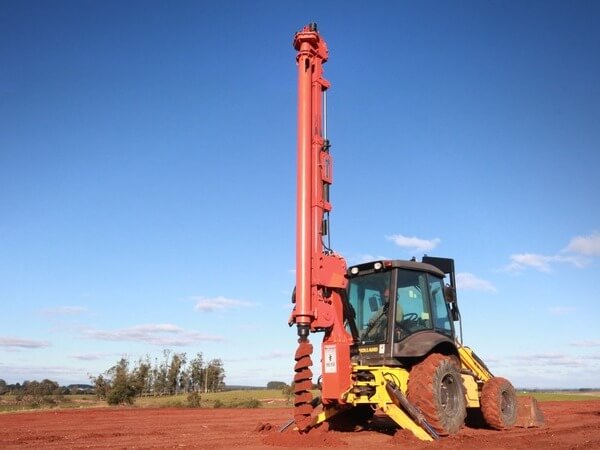

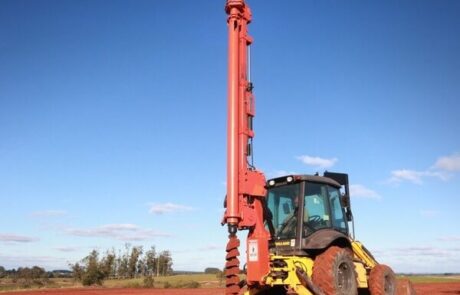

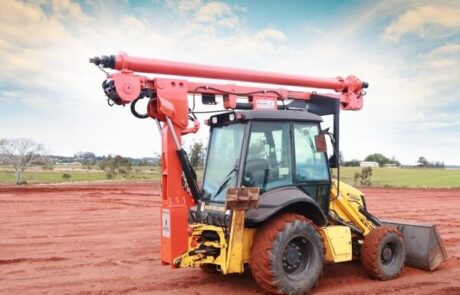

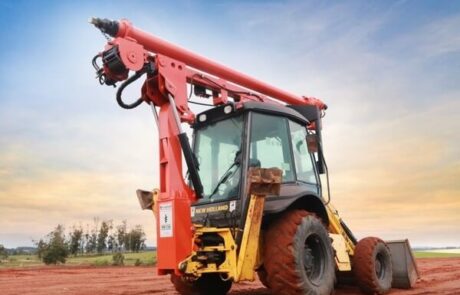

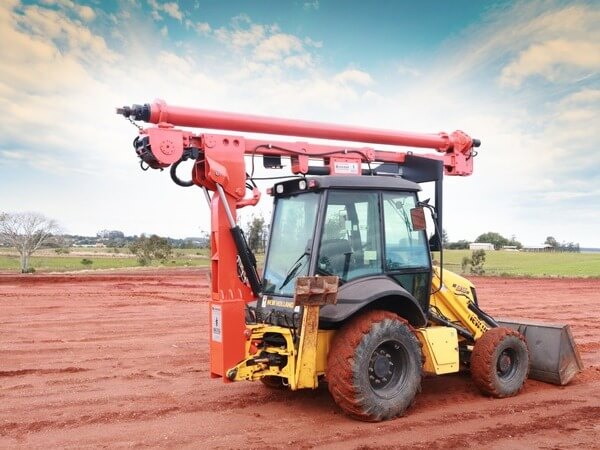

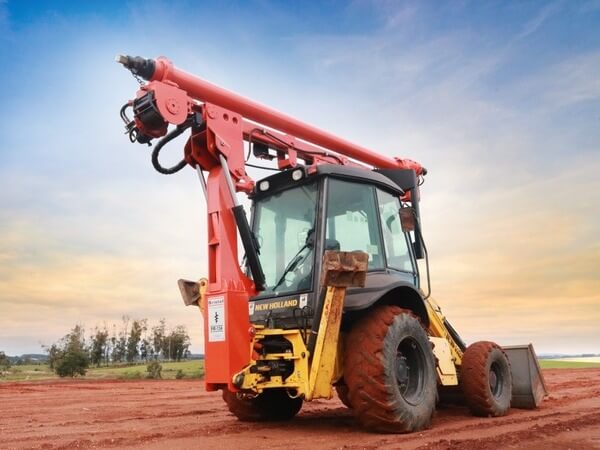

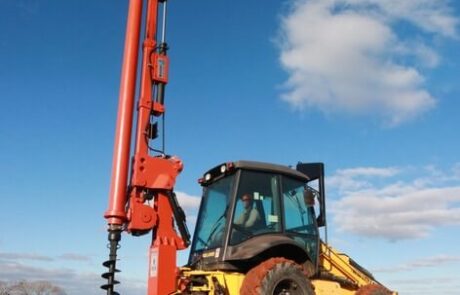

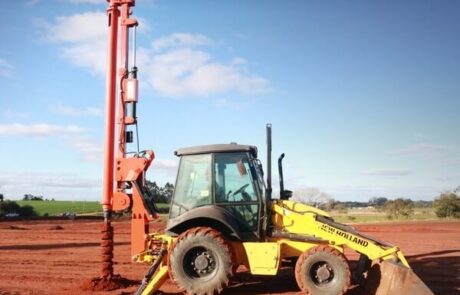

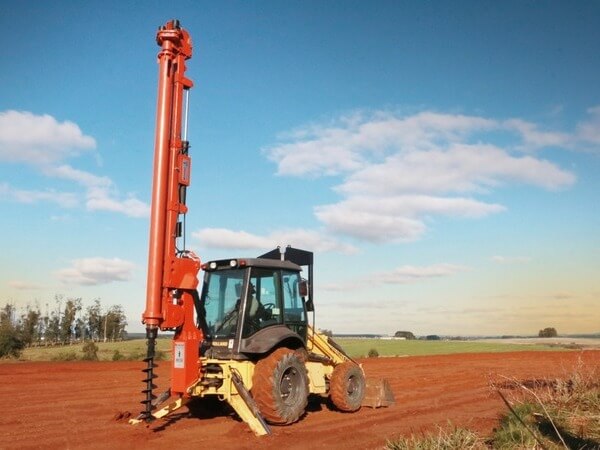

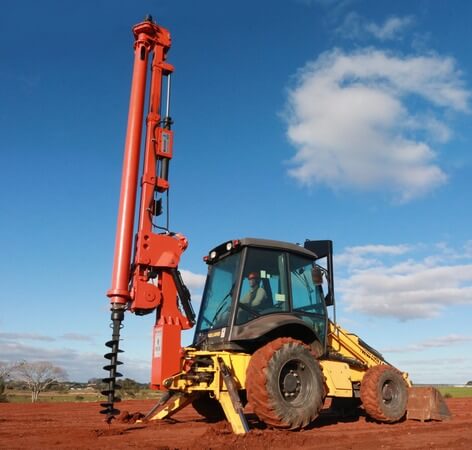

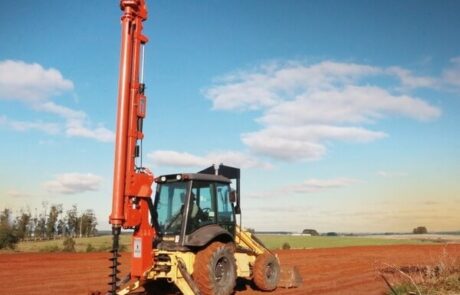

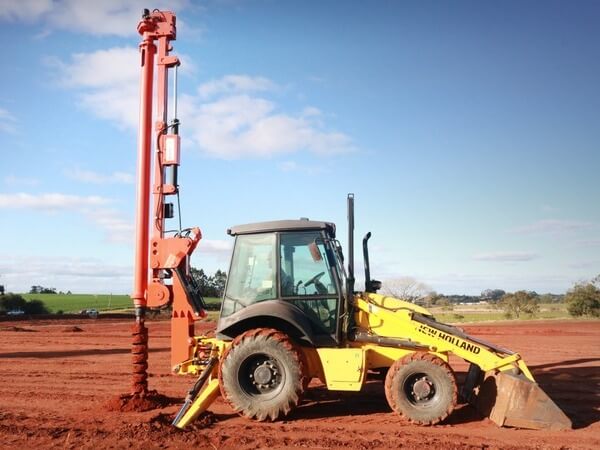

PR-134 Hydraulic Drill Rig
Hydraulic auger attachable to backhoe loaders. It has Drilling Tower, Pull Down, Hydraulic Winch and Telescopic Extension. Its reduction system is planetary, moved by two hydraulic motors. This equipment has precision leveling control. Furthermore, the telescopic extension allows for deeper drilling at high speed. Its drilling capacity is up to 10 m deep, with drills up to 1000 mm and torque of 12.446 Nm.
Technical Data
PR-134 Hydraulic Drill Rig
Feature | Value |
---|---|
Torque at a Maximum Pressure | 12.446 Nm |
Featured Machines | Backhoe |
Maximum Drilling Rotation | 58 rpm |
Maximum Auger Diameter | 1.000 mm |
Flow Rate | 152-190 l/min |
Pressure Range | 207-276 bar |
Maximum Pressure (Do not exceed) | 300 bar |
Maximum Auger Length | 1.000 mm |
Maximum Depth | 10 metros |
Cilinder Pulldown Stroke | 1.000 mm |
Compatible Augers
Model | Code |
---|---|
10″ x 39″ (250x1000mm) Straight Auger with Teeth | 137 315 |
12″ x 39″ (300x1000mm) Straight Auger with Teeth | 137 316 |
14″ x 39″ (350x1000mm) Straight Auger with Teeth | 137 317 |
16″ x 39″ (400x1000mm) Straight Auger with Teeth | 137 318 |
FAQ
PR can be used on any type of backhoe loader?
Yes.
Which bit is recommended for drilling in rocky soils?
For drilling in rocky soils, the use of bits with bits is recommended.
What flow rate does the hydraulic pump need to have for the equipment to work?
Above 40l/min.
What is the maximum drilling depth of the equipment?
Depth varies according to drill size, equipment strength and soil type.
Are original spare parts available for all products?
Yes, Bristol has the complete line of original spare parts.
Does the equipment come with the hydraulic hose? Does it always come with 3 mts or can it be longer?
Yes, it always comes with it, but according to the customer’s request, a larger hose size can be supplied.
